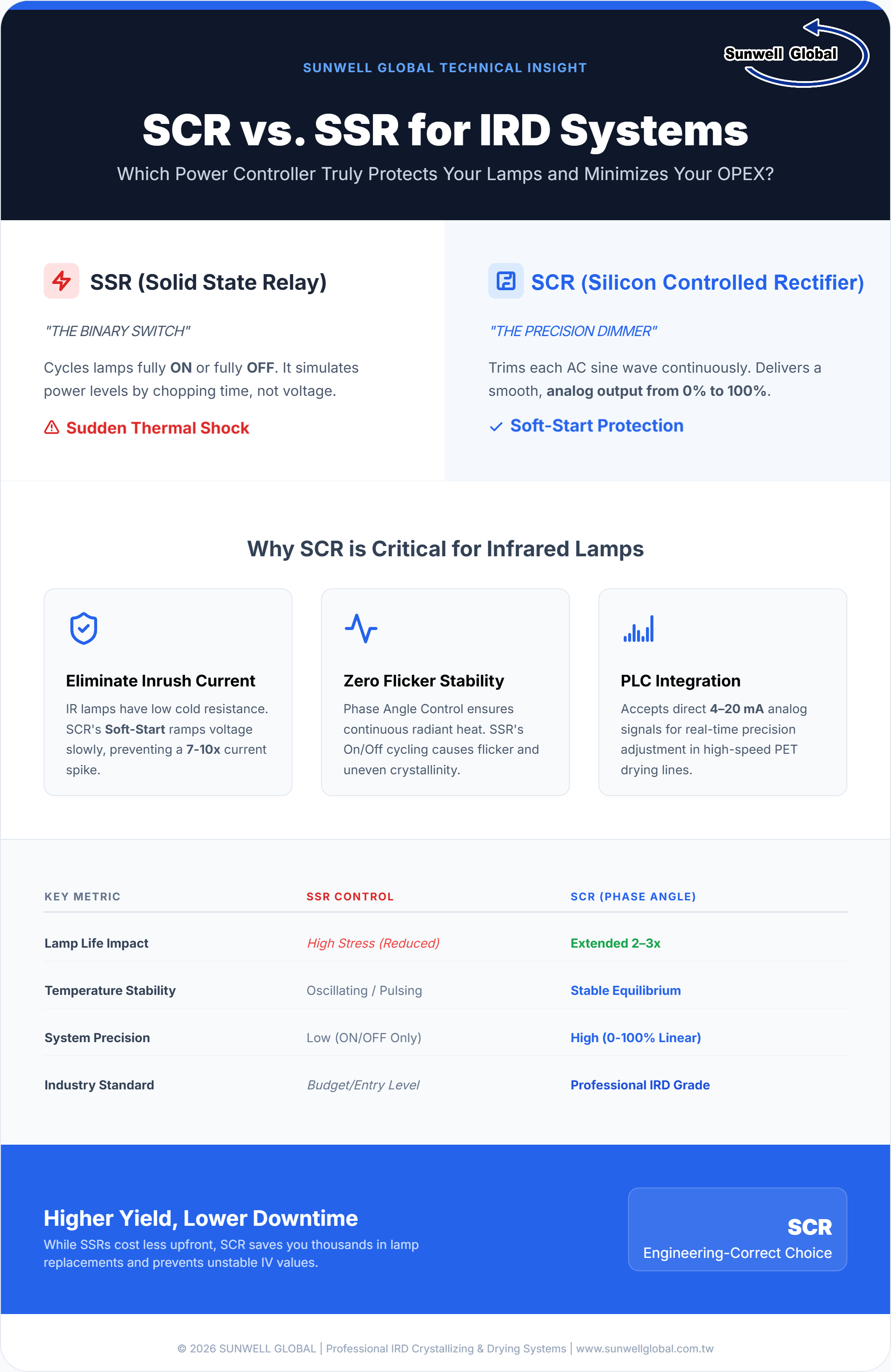

SCR vs. SSR for IRD Infrared Lamps
|
Which power controller truly protects your lamps, stabilizes your process, and lowers your total operating cost? |
In PET crystallizing and drying, every detail counts — including the power controller driving your infrared lamp banks. Two options are on the market: the Solid-State Relay (SSR) and the SCR power controller. They may look interchangeable, but they are not.
An SSR is a switch. It cycles lamps fully ON or fully OFF to simulate a target power level. An SCR is a dimmer. It trims each AC sine wave continuously, delivering a smooth, analog output from 0 to 100%.
Why SSR Falls Short for Infrared Lamps
• Infrared lamps have very low cold resistance. At startup, inrush current spikes to 7–10× normal. An SSR applies full voltage instantly — every single cycle. This thermal shock shortens lamp life significantly.
• Rapid ON/OFF cycling causes visible flicker and uneven radiant energy across the drum. In a Sunwell IRD system processing mixed rPET, this leads to inconsistent moisture output and unstable IV values.
• SSRs accept only on/off signals and cannot interface with the PLC's 4–20 mA analog output, making true closed-loop temperature control impossible.
Why SCR Is the Right Choice
• Soft Start suppresses the inrush spike at every startup, extending infrared lamp life by 2–3× or more.
• Phase angle control provides continuous, flicker-free power — stable radiant heat, uniform crystallinity, consistent moisture below 50 ppm.
• Direct analog input (4–20 mA / 0–10 V) integrates seamlessly with Sunwell's PLC-based multi-zone control, enabling real-time precision adjustment across all heater banks.
|
|
SSR |
SCR (Phase Angle) |
|
Output control |
ON/OFF only |
Continuous 0–100% |
|
Soft start |
None |
Standard |
|
Lamp life impact |
Reduced (inrush stress) |
Extended 2–3× |
|
PLC analog input |
Not compatible |
4–20 mA / 0–10 V |
|
Temperature stability |
Oscillates |
Stable |
While SSRs cost less upfront, the long-term math favors SCR: fewer lamp replacements, lower downtime, better process yield, and tighter energy use. For a professional IRD system handling 200–2,200 kg/hr of PET, SCR phase angle control is the industry-standard choice — and the engineering-correct one.
Learn more about the Sunwell IRD Crystallizing & Drying
Handling System:
https://www.sunwellglobal.com.tw/en/product/IRD-Crystallizing-and-Drying-Handling-System.html
