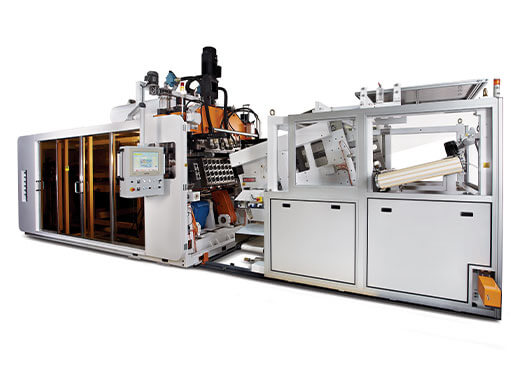

MT Series Cut in Mold Tilting Thermoforming Machine

A tilt mold thermoforming machine is designed for deep-draw packaging applications that require precise forming, accurate in-mold trimming, and efficient downstream product handling. It is commonly used to produce plastic cups, margarine tubs, dairy containers, and other thermoformed packaging with tight trim tolerances.

Sunwell’s MT Series Cut-in-Mold Tilting Thermoforming Machine combines forming, trimming, mold tilting, and automatic stacking in a single integrated system. With servo-driven motion control, stable sheet indexing, and flexible line configuration, it helps manufacturers achieve high productivity and consistent product quality in deep-draw thermoforming applications.

What is a Tilt Mold Thermoforming Machine?

A tilt mold thermoforming machine is a thermoforming system that integrates mold tilting movement into the forming and trimming process. This design is especially suitable for deep-draw products because it improves product transfer after forming, supports automatic downstream handling, and helps maintain stable production flow. Compared with conventional thermoforming configurations, a tilt mold design can improve product release, reduce handling complexity, and support better automation for high-volume cup and tub production.

Production Process & Machine Configuration

A complete tilt mold thermoforming machine integrates multiple systems to ensure accurate sheet heating, stable forming, clean in-mold trimming, and efficient product stacking:

• Sheet Feeding System: Supports roll-fed sheet input with servo-driven chain indexing for precise positioning during production.
• Heating Tunnel: Uses ceramic heating elements and multi-zone temperature control to deliver accurate and stable sheet heating before forming.
• Forming Station: Performs vacuum forming or pressure forming for deep-draw products with stable cavity forming and repeatable product quality.
• Servo-Controlled Plug Assist System: Improves wall thickness distribution and supports better material stretching in deep-draw applications.
• Cut-in-Mold Trimming System: Trims the formed product directly in the mold for precise trim tolerances and consistent edge quality.

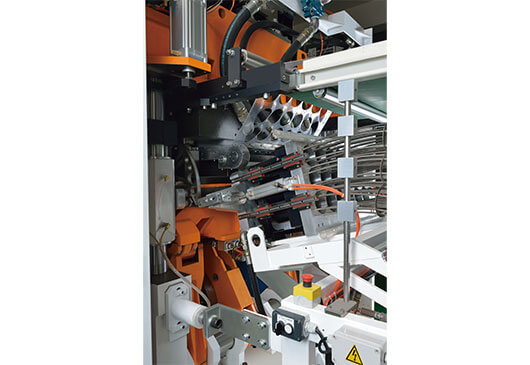

• Tilt Mold Transfer Mechanism: Uses a tilting mold movement to improve product transfer from the mold to the automation system, supporting smooth downstream handling.
• Automatic Stacking System: Can be configured with waterfall stacking or swiveling pick-and-place systems for efficient finished product collection.
• Scrap Handling System: Guides skeleton scrap to an in-line granulator or winder to improve floor space usage and reduce labor.

In actual production, the process begins with sheet feeding and controlled heating, followed by forming, in-mold trimming, mold tilting, product transfer, stacking, and scrap collection. This integrated machine configuration helps maintain precise trimming, stable output, and efficient automation for high-speed packaging production.

Key Features of Sunwell Tilt Mold Thermoforming Machine

Form-and-Trim-in-Mold Design

The MT Series integrates forming and trimming in one station, helping manufacturers achieve tight trim tolerances and simplified downstream handling.

Optimized for Deep-Draw Thermoforming

The machine is specifically designed for deep-draw packaging such as beverage cups, margarine tubs, and ice cream containers, where accurate forming depth and stable wall distribution are essential.

Advanced Servo Motion Control

Servo-driven platen movement, plug drive, and chain feed improve forming accuracy, sheet positioning, and repeatable production performance.

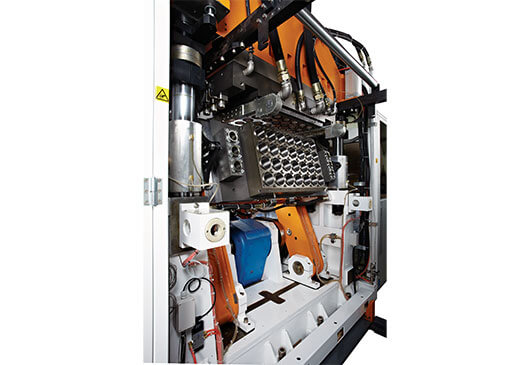

75-Degree Tilting Mold Movement

The movable bottom platen with tilting function supports smooth product release and transfer to automated stacking systems, improving production efficiency.

Flexible Production Layout

The machine can operate as a standalone roll-fed thermoforming unit or be integrated in-line with an extrusion system to match different plant layouts and output requirements.

Automated Product Collection and Scrap Handling

Integrated stacking and scrap recovery options help reduce labor demand, improve floor space efficiency, and support continuous industrial production.

How to Choose the Right Tilt Mold Thermoforming Machine

When selecting a tilt mold thermoforming machine, manufacturers should evaluate the machine based on product geometry, required output, and automation needs:

• Product type and draw depth.
• Required sheet width range.
• Maximum forming and trimming area.
• Cycle speed requirements.
• Automation preference for stacking and scrap handling.
• Standalone or in-line integration requirements.

A properly selected machine configuration can improve product consistency, reduce trimming variation, and support more efficient production of deep-draw thermoformed packaging.

Why Choose Sunwell Tilt Mold Thermoforming Solutions

• Specialized design for deep-draw thermoforming applications.
• Integrated forming, trimming, tilting, and stacking in one system.
• Servo-controlled operation for stable accuracy and repeatability.
• Flexible layout options for standalone or in-line production.

FAQ

What products can be made with a tilt mold thermoforming machine?

Typical products include beverage cups, margarine tubs, ice cream containers, dairy cups, and other deep-draw food packaging items.

Why is cut-in-mold trimming important?

Cut-in-mold trimming helps achieve precise trim tolerances, consistent edge quality, and simplified downstream handling.

Can this machine be integrated with an extrusion line?

Yes. Sunwell’s MT Series can be used as a standalone roll-fed machine or integrated in-line with an extrusion system.
