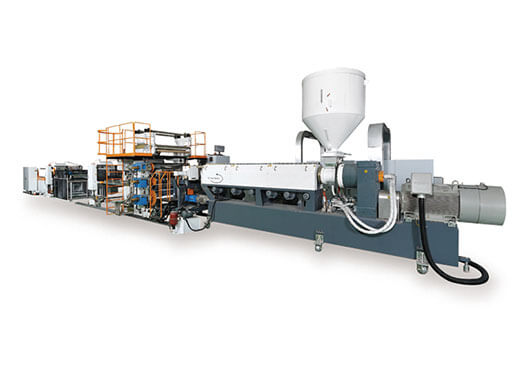

Plastic Sheet Extrusion Line - pic1

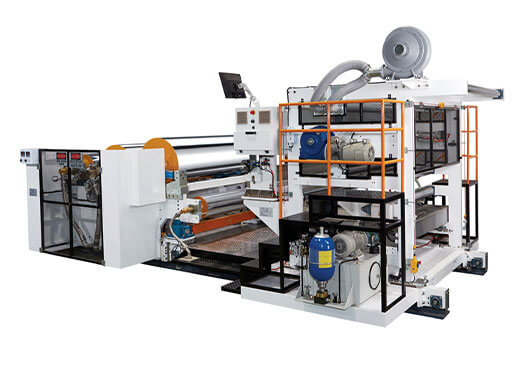

Plastic Sheet Extrusion Line - pic2

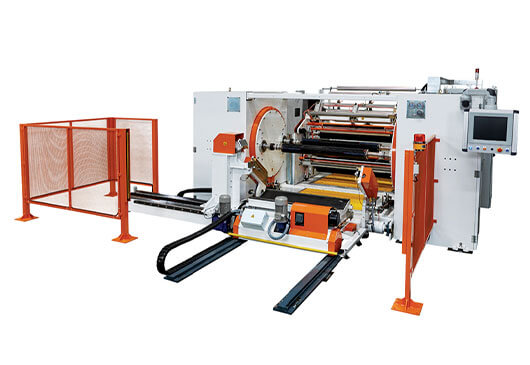

Plastic Sheet Extrusion Line - pic3

Plastic Sheet Extrusion Lines

Rigid sheet extruder for various packing raw material application.

  • Material: PS, PP, PET, and other rigid sheet polymers
  • Material Thickness: 0.2-3 mm (details see specification)
  • Output: 200-2200 kg/hr (details see specification)
HIPS/PP/APET Rigid Sheet Extrusion Lines


Sunwell Global is a world leader in the manufacture of plastic sheet extrusion systems. We offer complete turnkey systems for mono-layer, multi-layer and barrier layer sheet extrusion requirements. The systems can be configured to run sheet off-line with winding or shearing equipment, in-line with a thermoformer for high volume parts. We offer processing expertise in polypropylene, PET, polystyrene and other polymers. Our typical production equipment extrusion rates begin at 200 kg/hr and go up to 4000 kg/hr.

The extruders(plastic sheet extrusion lines) are normally fitted with filtering devices, melt pumps, static mixers, co-extrusion manifolds (where applicable) and state of the art manifold flat dies.

The plastic sheet extrusion systems typically range in width from 750 mm to 1700 mm wide. The roll diameters are sized to provide ample cooling based on the process requirements.

Sunwell also offers a complete line of auxiliary equipment for sheet production including: microprocessor process control, gravimetric blending and feeding equipment, coating and laminating stations, sheet gauging systems with automatic profile control, and winding equipment.

We invite you to join the most efficient and profitable companies in the world that call Sunwell Global their partner in sheet production equipment.


MODEL HIPS/PP/APET Rigid Sheet Extrusion Lines
PS; PP; PET; PLA and Other Rigid Sheet Polymers
Single Extrusion Mono Layer or Co-extrusion Multi Layers
Sheet Cut; Reel Wind; In-line with Thermoforming Machine
0.2 ~ 3mm
500 ~ 1,700mm
Screw Dia.
50; 65; 75; 90; 100; 120; 130; 150; 180 & 200mm
200 ~ 2,000 kg/h
Line Speed
Up to 100M/Min.
Cooling Rolls Stack
Vertical; 45 Incline; Horizontal, J Type and 3rd Roll Rotating Type
Cooling Rolls Dia.
300; 350; 400; 450; 500; 600; 750; 900mm
Heat Exchange
Direct or Indirect Type
Razor Blades, Rotating Blades
Fix Shaft; Cantilever; Removable Roll Cart; Jumbo Roll and Automatic Cutover Turret
Drive System
SIEMENS AC Drive with FLENDER Gearbox or Equivalent
